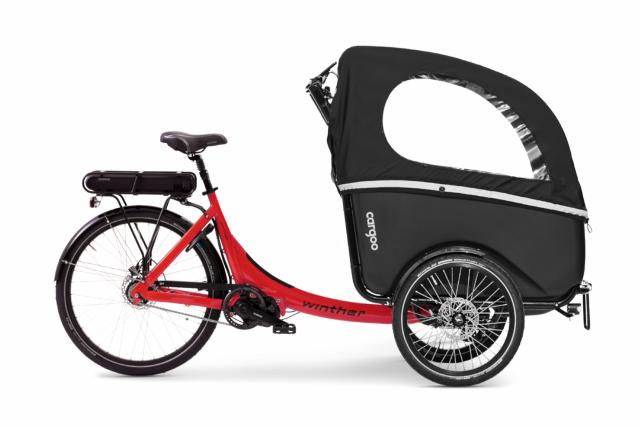

Cargoo is Our Most Flexible Model for Your Family's Changing Demand
-
Versatile Space
Cargoo is our roomiest cargo bike. It features a 278 L cabin, which matches the trunk of a small to medium-sized car and can carry up to 100 kg. It holds up to four children in the steel tube reinforced cabin. Choose among a variety of seating options. If you have small children, the ISO fix Console makes life easier when switching between different transport modes. Just move the ISO-FIX auto seat from your car to your Cargoo - and back. Or will you bring your partner along? Then choose our Family Bench which allows children and grown-ups to share the bench. Options are many so that you can design it based on your needs.
![Winther Cargoo Versatile Space Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Versatile_Space.gif)
![Winther Cargoo Versatile Space Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Versatile_Space.gif)
![Winther Cargoo Hood Designed for Head Protection Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Hood.gif)
![Winther Cargoo Hood Designed for Head Protection Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Hood.gif)
-
Hood Designed for Head Protection
The Cargoo Hood is designed as a safety feature. The strong 22 mm aluminum bars offer protection above children's heads for added safety. Its secondary purpose from rain and wind. The hood features four windows and is easy to remove from the bike during summertime. If it rains, simply reattach the hood to the six fixing points and you’re ready to go. The hood opens at the front with two tough YKK zippers and at the rear with two fixing points. It also comes with rubber straps for a snug fit when the hood needs to stay open. With the Cargoo Hood, your children will stay dry but still have a great outlook.
-
Navigate with Ease
Cargoo has one of the smallest turning circles on the market, enabling it to make tight turns in confined spaces and even perform U-turns. The lightweight aluminum frame enhances maneuverability, making it a pleasure to ride.
The stable 3-wheeled platform ensures high stability while loading and unloading. Parking the bike is made simple with the 3-wheel design - activating the parking brake locks the two front wheels, allowing you to safely leave the bike on any terrain. A sturdy Gas-damper softens the ride even with larger loads in the cabin.
![Winther Cargoo Navigate with Ease Cargoo Red Black](/Admin/Public/GetImage.ashx?image=%2fFiles%2fImages%2fCargoo%2fCargoo_turning_Radius_1.png&width=640&format=webp)
![Winther Cargoo Navigate with Ease Cargoo Red Black](/Admin/Public/GetImage.ashx?image=%2fFiles%2fImages%2fCargoo%2fCargoo_turning_Radius_1.png&width=640&format=webp)
-
Safety Features On Winther Cargoo
Cargoo is equipped with Hydraulic Disc Brakes on all three wheels, which is a most powerful and safe brake option. They feature a strong braking force during all weather conditions, also when it’s wet outside. Hydraulic Disc Brakes are superior in modulation - meaning the ability to precisely and accurately control the braking force - so you can stop the bike when and where you want.
The brake system comes with a parking brake which is easily activated by pushing a dial on the left brake lever. This locks the two front wheels, securing the cargo bike, also on uneven terrain.
The strong 22 mm aluminum bars offer protection above children's heads for added safety. Holding the cabin cover is their secondary purpose.
The cabin hood, tires and cabin base is fitted with reflectors - for added visibility.
Our cabin bases are formed in strong impact-resistant PE or PSPE material without any sharp edges. This enhances child comfort and safety during the ride. The front frame of Winther cargo bikes is engineered to effectively distribute and transfer impact forces.
For increased child safety, the Cargoo features a low seat position in the cabin. This restricts the field of vision of the smallest passengers in a calming manner and also prevents them from reaching out during the ride.
All seat solutions in the Cargoo are equipped with a 5-point harness as standard, ensuring that everyone is securely fastened during the ride. All baby seat solutions in Winther cargo bikes are rear facing for increased safety.
Cargoo is equipped with Hydraulic Disc Brakes on all three wheels, which is a most powerful and safe brake option. They feature a strong braking force during all weather conditions, also when it’s wet outside. Hydraulic Disc Brakes are superior in modulation - meaning the ability to precisely and accurately control the braking force - so you can stop the bike when and where you want.
The brake system comes with a parking brake which is easily activated by pushing a dial on the left brake lever. This locks the two front wheels, securing the cargo bike, also on uneven terrain.
The strong 22 mm aluminum bars offer protection above children's heads for added safety. Holding the cabin cover is their secondary purpose.
The cabin hood, tires and cabin base is fitted with reflectors - for added visibility.
Our cabin bases are formed in strong impact-resistant PE or PSPE material without any sharp edges. This enhances child comfort and safety during the ride. The front frame of Winther cargo bikes is engineered to effectively distribute and transfer impact forces.
For increased child safety, the Cargoo features a low seat position in the cabin. This restricts the field of vision of the smallest passengers in a calming manner and also prevents them from reaching out during the ride.
All seat solutions in the Cargoo are equipped with a 5-point harness as standard, ensuring that everyone is securely fastened during the ride. All baby seat solutions in Winther cargo bikes are rear facing for increased safety.
![Winther Cargoo Customized to Your Personal Style Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Customized_to_your_style.gif)
![Winther Cargoo Customized to Your Personal Style Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Customized_to_your_style.gif)
-
Customized to Your Personal Style
Adding stickers to your Cargoo is a great way to make it your own and customize it to your style. The large cabin sides leave plenty of space to be creative.
Stickers can be used to make your cargo bike stand out from the crowd. For a unique, personal touch, add your family name on the cargo bike.
-
Safety Lights and Reflectors
The front and rear lights are always included in the standard E-motor package for optimal safety. The bright lights are powered by the motor's battery, eliminating the need to worry about having light in the dark. You can easily turn the lights on and off via the display on the handlebar.
Winther cargo bikes are equipped with reflectors on the front and back as standard. The Cabin Hood also features a strip of reflector. Combined with reflectors on the tires and pedals, you will always be seen when riding in the dark.
![Winther Cargoo Safety Lights and Reflectors Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Light_and_Reflectors.gif)
![Winther Cargoo Safety Lights and Reflectors Cargoo Red Black](/Files/Videos/Cargoo/Winther_Cargo_Bikes_ Cargoo_Light_and_Reflectors.gif)
![Winther Cargoo Easy Access for Your Child with a Front Step Cargoo Red Black](/Admin/Public/GetImage.ashx?image=%2fFiles%2fImages%2fCargoo%2fCargoo+Step_ladder.png&width=640&format=webp)
![Winther Cargoo Easy Access for Your Child with a Front Step Cargoo Red Black](/Admin/Public/GetImage.ashx?image=%2fFiles%2fImages%2fCargoo%2fCargoo+Step_ladder.png&width=640&format=webp)
-
Easy Access for Your Child with a Front Step
The front step facilitates children's independent climbing onto the cargo bike, thus minimizing the need for adults to lift them. Additionally, Cargoo's lower front end simplifies the process of lifting smaller children or heavy items in and out of the cabin.
-
9 different Seat Solutions
-
Tailwind On Demand
All Winther cargo bikes can be equipped with either a rear hub motor or a mid-drive motor. The rear hub motor provides robust pedaling assistance, making it easier to conquer any terrain. It is powerful, reliable, and durable. On the other hand, the mid-drive motor offers a smoother and more stable ride, improving overall balance and comfort. When selecting the right motor, consider technical specifications and personal preferences, such as power, speed, and torque. Our E-motors assist until 25 km/h for compliance and safety. All Winther cargo bikes come equipped with a removable battery, providing maximum convenience for recharging at any standard power outlet.
MOTOR & GEAR OPTIONS
-
The Bafang rear hub motor with 8 external gears gives you powerful pedaling assistance and can feel like you are getting a friendly push from behind. When the sensor-based motor kicks in, you get a consistent and even help from the motor matching your selected assist level.
The e-motor system consists of a Bafang motor connected to a huge high-capacity battery, giving Winther Cargoo an incredibly powerful and lightweight rear hub motor. The motor system is powered by a powerful Bafang Li-Ion battery with a capacity of 750 Wh (equivalent to 17.5 Ah), located on the rear rack, and has an output torque of 45 Nm, giving Winther Cargoo plenty of power, both up the steep hills and in quick accelerations. The Bafang M410 also features a startup assist, which helps the rider maneuver the cargo bike more easily when sitting on the cargo bike. This feature is particularly useful when you need extra push starting up or navigating tight spaces.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 5 different power levels, providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills.
Together with the motor, the battery gives you an estimated range of up to 60 km on a single charge, depending on terrain, weather conditions, load, and assistance level. With the 8 external gears, you have even more control over your pedaling and can adjust for different terrain and riding conditions. The Bafang rear hub motor weighs 3.8 kg and is designed in an elegant style that perfectly matches Winther Cargoo sleek design.
-
BAFANG's 3-speed automatic mechanical gear shift is designed to enhance your cycling experience. The gear shift operates automatically and is controlled by the wheel's speed and centrifugal force. This means that you can maintain a smooth cadence without having to manually change gears. The automatic gear shift, located in the rear hub, eliminates the need for gear cables that can freeze in winter. This ensures minimal maintenance and ensures a seamless riding experience, even in the coldest months.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 5 different power levels, providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills. The Bafang 410 also features a start assist feature, which helps the rider maneuver the cargo bike more easily when walking beside it. This feature is particularly useful when you need extra push starting up or navigating tight spaces.
Thanks to its accurate gear mechanism, the 3-speed shift system effortlessly enhances your ride. Depending on the wheel speed, the gears shift with precision, providing a seamless and enjoyable riding experience.
The motor system is powered by a high-performance Bafang Li-Ion battery, boasting an impressive capacity of 752Wh (equivalent to 17.5 Ah). Conveniently located on the rear rack, this battery delivers ample power for your rides. With this motor and battery combination, you can expect an estimated range of up to 60 km on a single charge. However, please note that the range may vary depending on factors such as terrain, weather conditions, load, and assistance level.
-
The powerful and lightweight Bafang M410 motor offers an unbeatable combination of performance and design. With its 5 internal gears and handlebar-mounted shifter, this motor provides impressive power and versatility. The Bafang M410 has a torque output of 80 Nm and a power output of 250 watts, allowing Winther Cargoo to effortlessly handle uphill climbs and accelerate quickly. In addition, it operates silently and resiliently in any weather condition.
To power this exceptional motor system, Winther Cargoo relies on a high-capacity Bafang Li-Ion battery. With a capacity of 752 Wh (equivalent to 17.5 Ah), this battery provides long-lasting power for the motor. Conveniently located on the rear rack, the battery, combined with the motor, offers an estimated range of up to 60 km on a single charge. It is important to note that the actual range may vary depending on terrain, weather conditions, load, and assistance level.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 5 different power levels, providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills.
The Bafang M410 also features a startup assist, which helps the rider maneuver the cargo bike more easily when sitting on the cargo bike. This feature is particularly useful when you need extra push starting up or navigating tight spaces.
-
Shimano STePS E6100 provides Winther Cargoo with a powerful, lightweight mid-drive motor combined with an Alfine 8-speed internal gear system and a shifter mounted on the right side of the handlebars. The motor can provide 250 watts and has an output torque of 54 Nm, giving Winther Cargoo plenty of power, both up hills and in fast accelerations. The motor is extremely quiet and durable in all weather conditions.
Additionally, with the Alfine 8-speed internal gear system, riders can easily switch between gears to find the right level of resistance for their riding needs. The internal gears provide a smooth and efficient shifting experience, allowing riders to keep their momentum and power through various terrains and conditions.
The motor system is powered by a powerful Li-Ion battery of 504 Wh (equivalent to 14 Ah), located on the rear rack. This placement ensures a balanced weight distribution for optimal handling and stability. Together with the motor, the battery gives you an estimated range of up to 55 km on a single charge, but of course, this depends on terrain, weather conditions, load, and the assistance level.
Controlling the motor and assistance levels is easy with the display mounted on the handlebars. The display allows riders to select from 3 different power levels (Eco, Normal, High), providing varying levels of assistance based on their preferences and needs. This allows for a customized riding experience, whether it's conserving battery power on flatter terrains or getting an extra boost on steep hills. In addition to its powerful motor and internal gear system, the Shimano STePS E6100 is also compatible with AXA One-Key-System. This feature allows riders to use the same key to lock both their battery and bike, providing added convenience and security.
-
The Shimano STePS E6100CRG motor featured on Winther Cargoo is a mid-drive motor with a power output of 250 watts and a torque rating of 60 Nm. It is known for being strong, lightweight, and quiet. One of the notable features of this motor is its automatic gear shifting capability. Using the Di2 technology, the electronic gears shift automatically as you ride, making the 5 internal gear changes seamless and convenient. It shifts up as you gain speed and downshifts when you come to a stop, ensuring optimal gear ratios at all times.
The motor system is powered by a high-capacity Li-Ion battery with a rating of 14Ah and an energy content of 405Wh. The battery is located on the rear rack of the cargo bike, providing easy access for charging and replacement. With this battery, you can expect an estimated range of up to 60 km on a single charge, depending on various factors such as terrain, weather conditions, load, and the level of assistance you use.
In terms of gears, the Shimano STePS E6100CRG allows for manual control of gears, giving you the ability to override the automatic gear shifting when needed. This feature is especially useful when facing steep hills and requiring quick downshifting for optimal power and control.
Furthermore, the Shimano STePS system is compatible with the AXA One-Key-System, which allows you to use the same key for both your battery lock and bike lock. This adds an extra level of convenience and security, as you only need one key to lock and unlock both components.
Overall, the Shimano STePS E6100CRG motor on Winther Cargoo offers a powerful and efficient riding experience, with automatic gear shifting, a high-capacity battery, and compatibility with the One-Key-System. Whether you're climbing hills or cruising on flat terrain, this motor and its features provide a smooth and enjoyable ride.
-
Mix and Match Colors
- Mix and match hood and frame colours to find just the right combination for you. Whether you lean towards a timeless black and white style or desire a vibrant splash of color, we have options to suit your preferences. By utilizing the freedom to mix and match colours, you can ensure that your cargo bike stands out among others.
FRAME COLORS
HOOD COLORS
Technical Specification
Frame Construction | Aluminium 6061 (rear), Steel (front) |
---|---|
Cabin Base | Impact-resistant PSPE material, UV stabilised |
Hood | Phthalate-free nylon, Shower-proof material |
Steering System | Head tube-based to ensure stable and dynamic steering |
Steering Damper | 1 setting |
Load Capacity | Total Max Weight: 250 Kg, Load cabin: Max 100 kg, Rider: Max 110 kg |
Dimensions | Length: 207 cm, width: 89 cm, height: 114 cm |
Cabin Dimensions | Length: 86 cm, width: 70 cm, height from cabin seat to hood: 74 cm |
Designer | Leif Hagerup & Lars Malmborg |
Download catalogues & product data
Name | Download | File type | |
---|---|---|---|
|
Technical Specifications | 268 KB | |
|
Catalogue | 4021 KB | |
|
General Instruction Manual | 1690 KB | |
|
Seat Solutions | 1144 KB |
